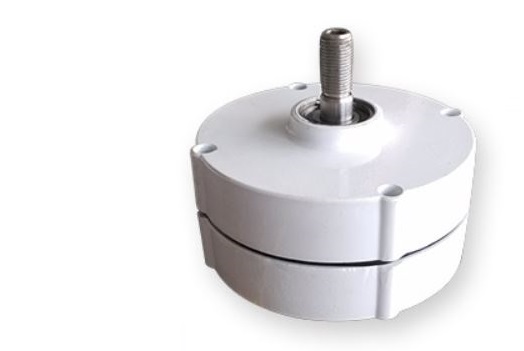

  • Wind Turbine Generator YAF-100

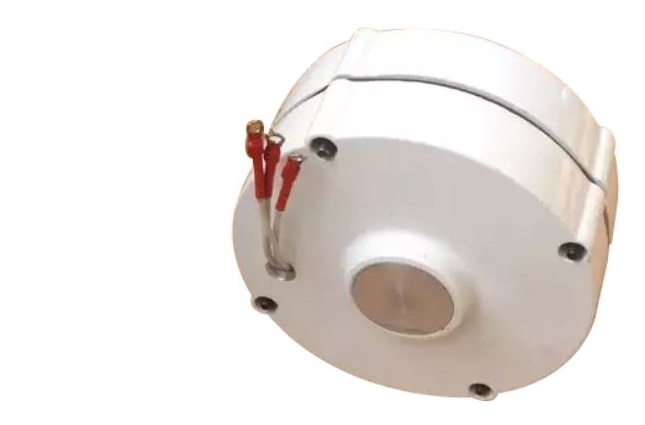

  • Wind Turbine Generator YAF-100 Back

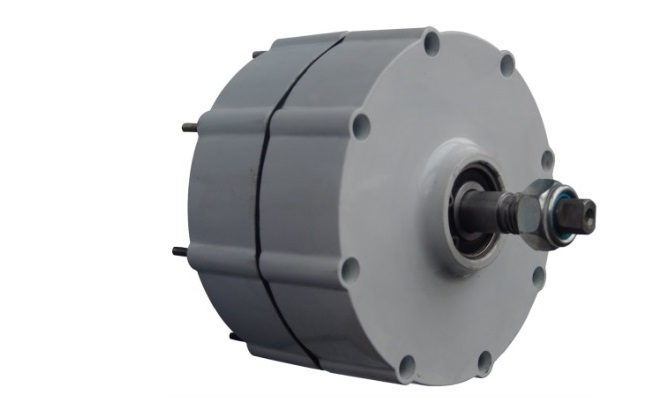

  • Wind Turbine Generator YAF-500

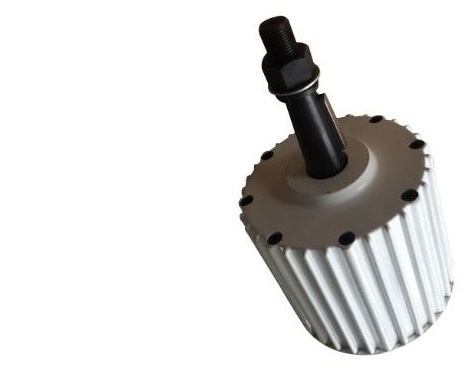

  • Wind Turbine Generator YAF-1000

The wind turbine generator is brushless, three phase, permanent magnet alternator, AC output. The housing is made of aluminum alloy, that's rust proof and anti-corrosive. The generator is small size and easy to mount.


The generator is widely used in small wind turbine for marine, street light, etc.


Features:


  • High efficiency output, >85%.
  • Small size, easy to mount.
  • Low start torque, very easy to spin
  • Low noisy, silent working.
  • Long operating life, >5,000 hours.

Specification:

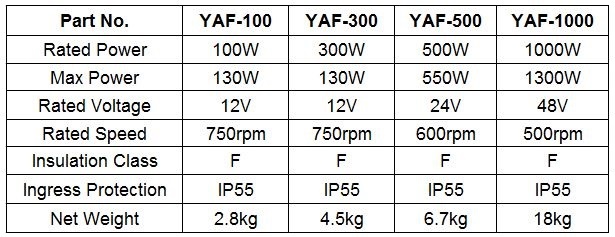

Wind Turbine Generator Specification

Dimension:

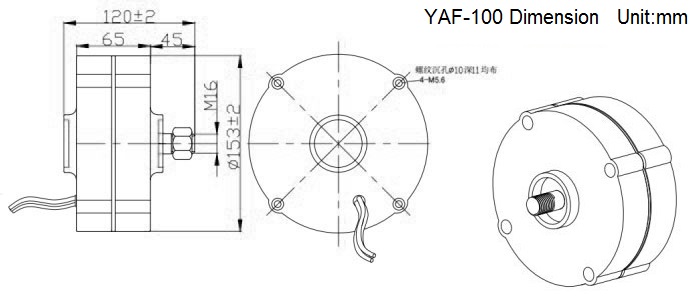

wind turbine generator YAF-100 dimension

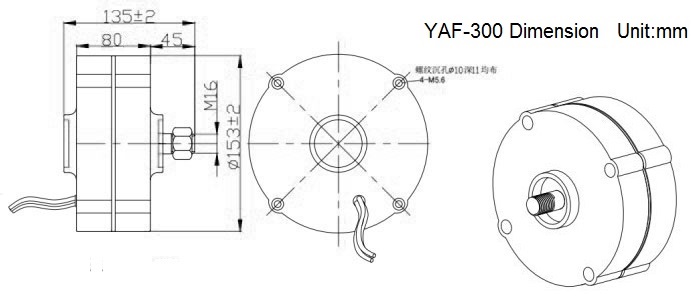

wind turbine generator YAF-300 dimension

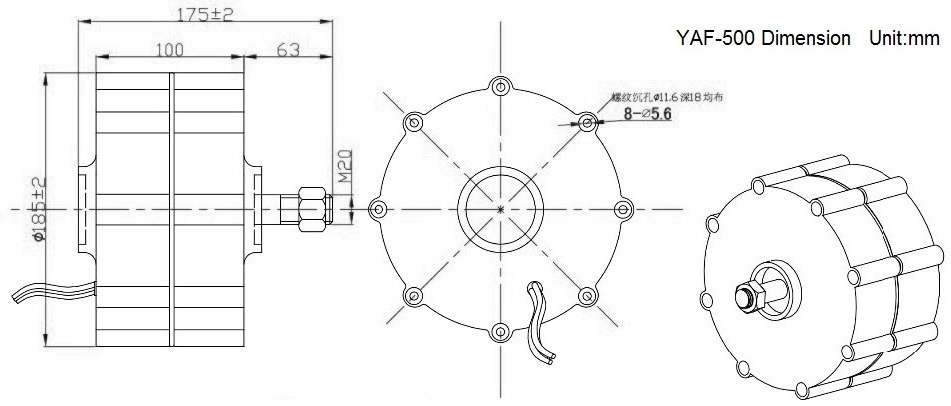

wind turbine generator YAF-500 dimension

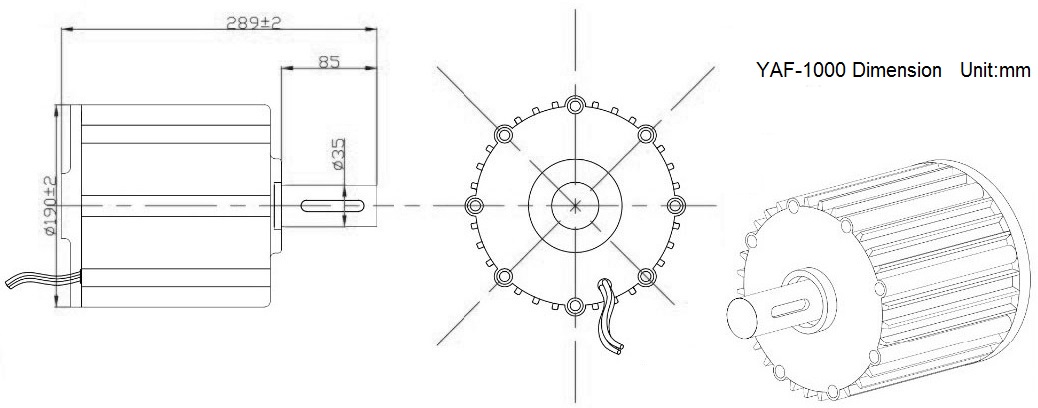

wind turbine generator YAF-1000 dimension

Output Curve:

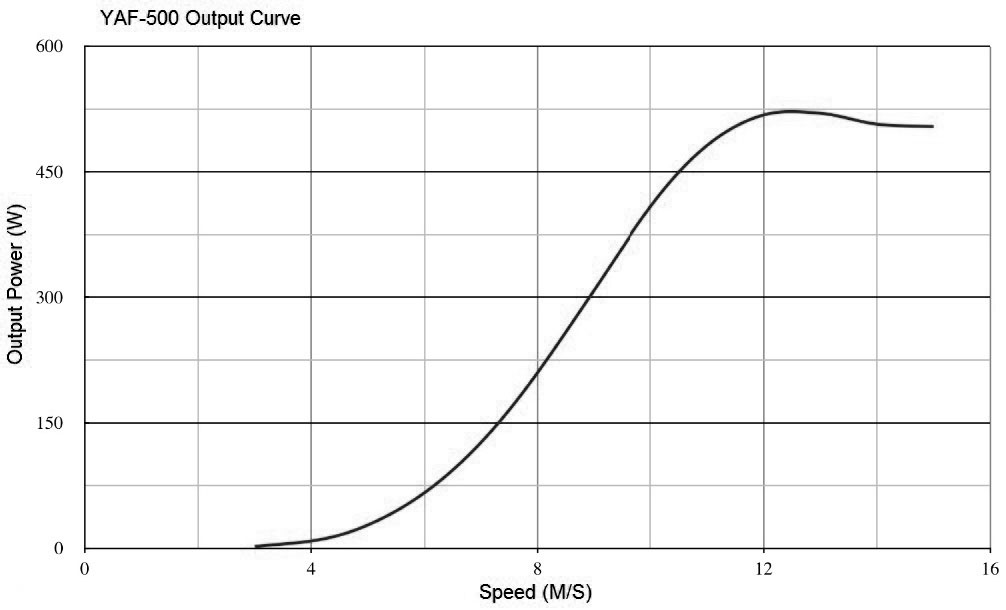

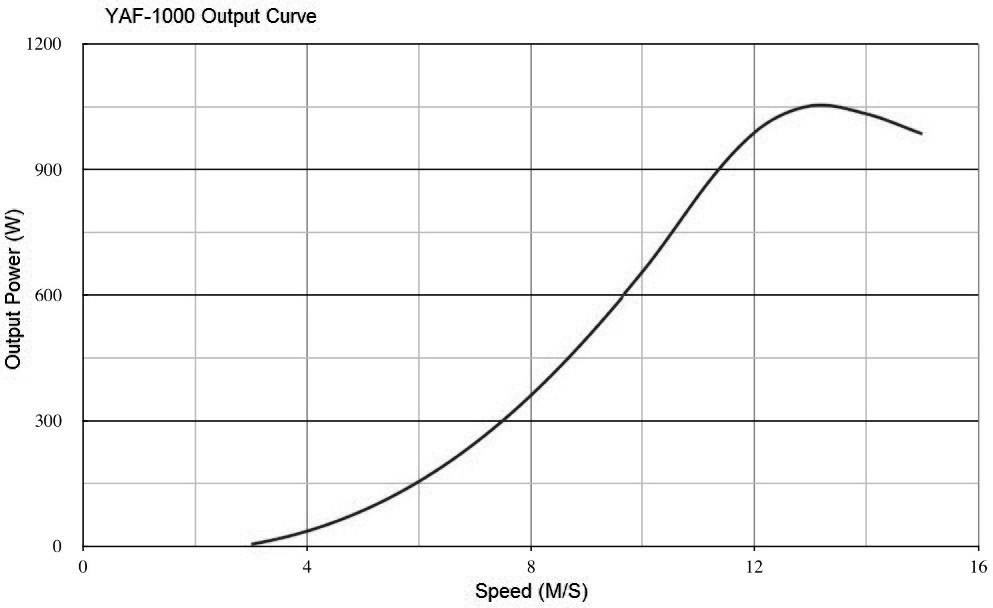

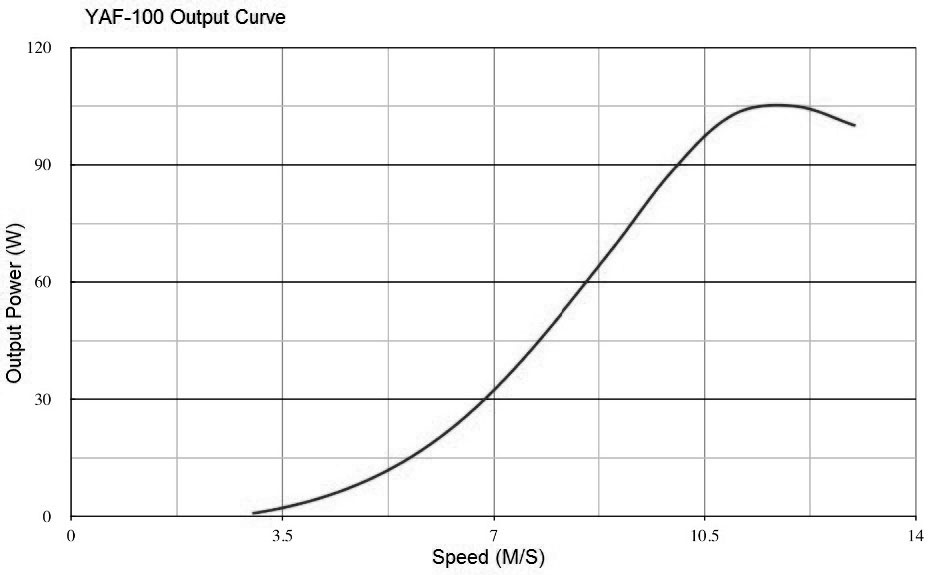

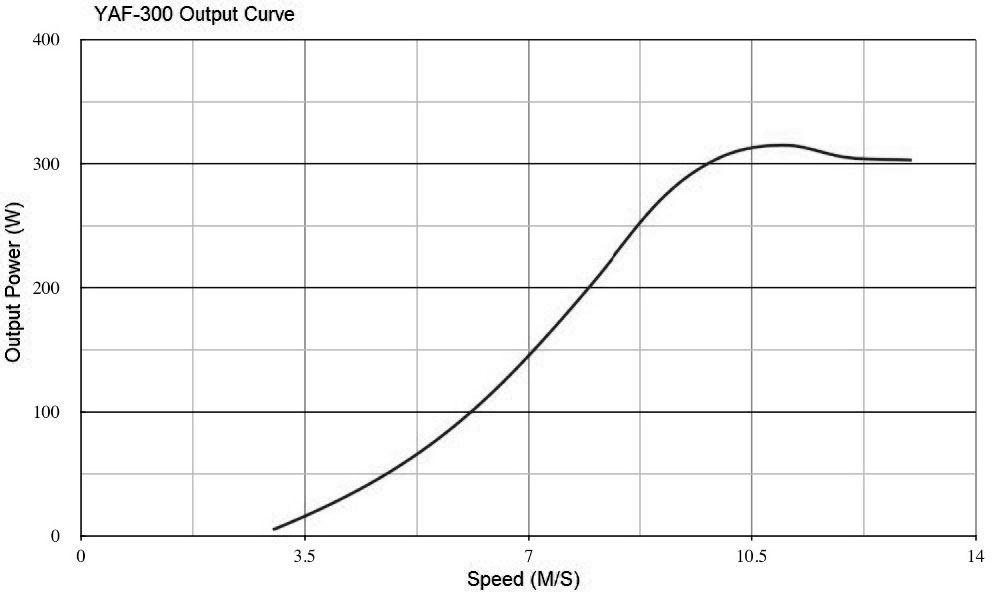

wind turbine generator YAF-100 curve wind turbine generator YAF-300 curve wind turbine generator YAF-500 curve wind turbine generator YAF-1000 curve

Applications:

  • HAWT

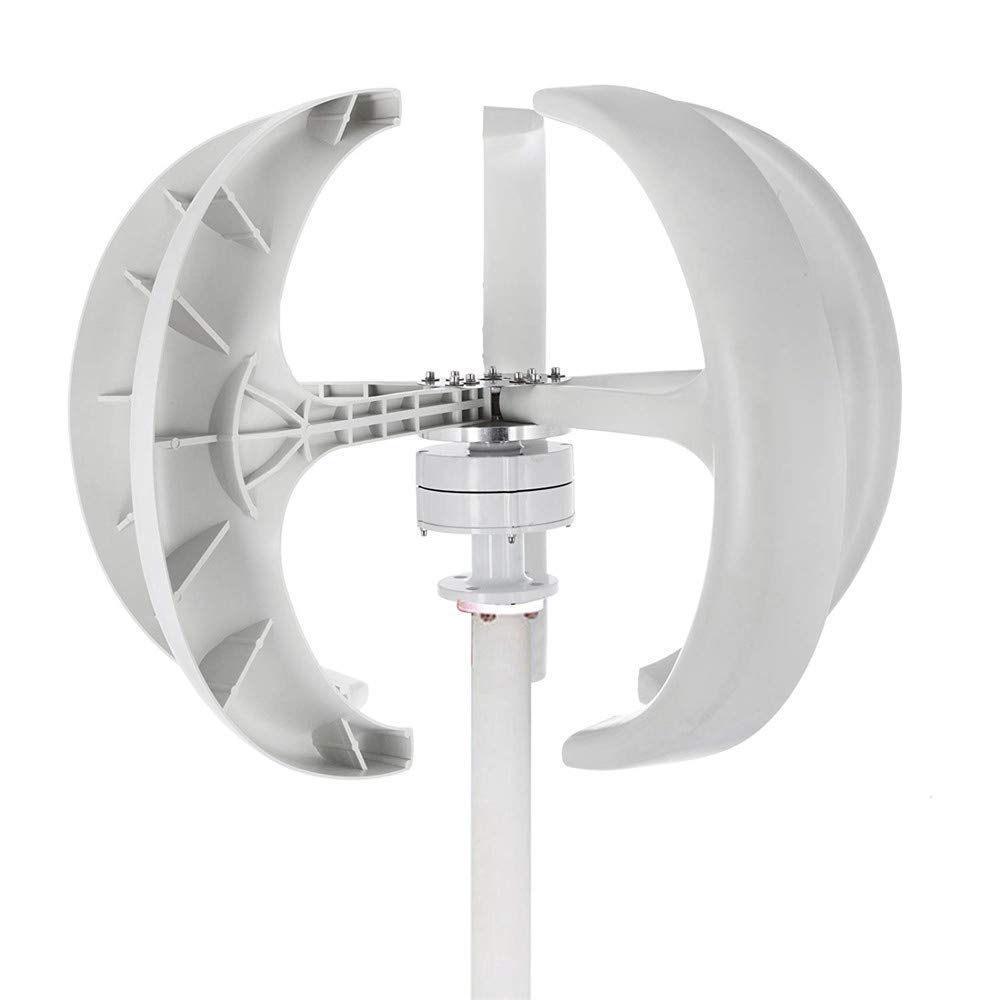

  • VAWT
