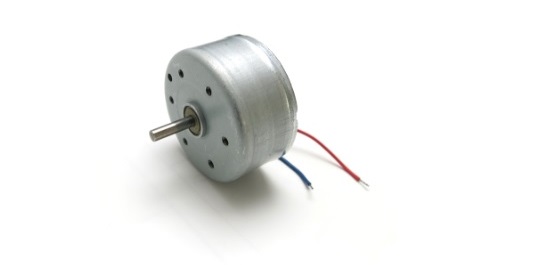

  • mini motor rf-300

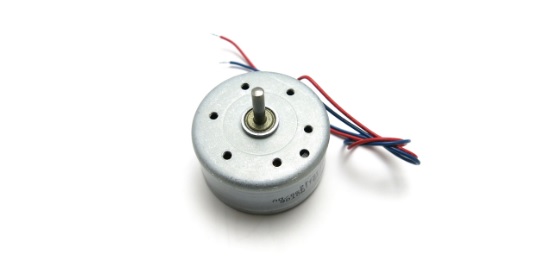

  • mini motor rf-300 head

The RF-300 is small brush DC motor. The motor is light weight, very compact and easy to mount.


The RF-300 is widely used in CD drive, money counter, and mini USB fan, etc.


Features:


  • High torque, high speed.
  • Small size, very compact.
  • Light weight, only 22g (approx).
  • Low noisy, silent working.
  • Long operating life, >4,000 hours.

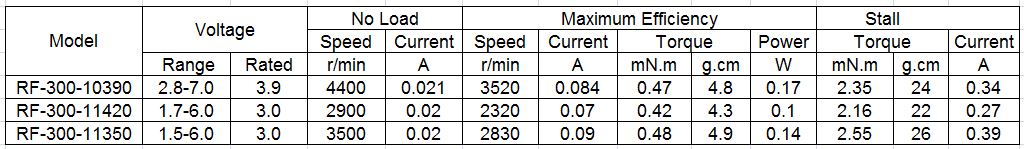

Data Sheet:

mini dc motor rf-300 data sheet

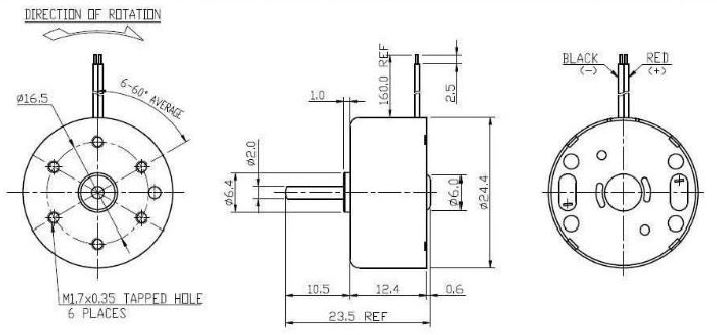

Dimension:

mini dc motor rf-300 dimension

Applications:

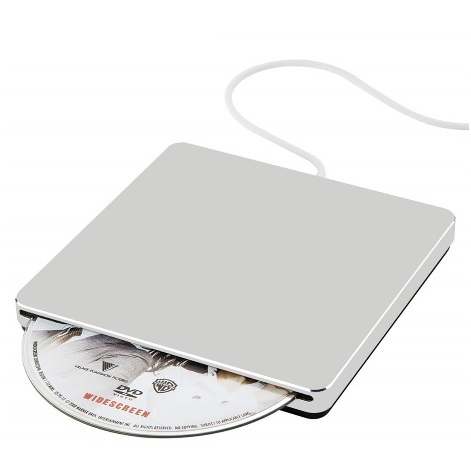

  • CD Drive

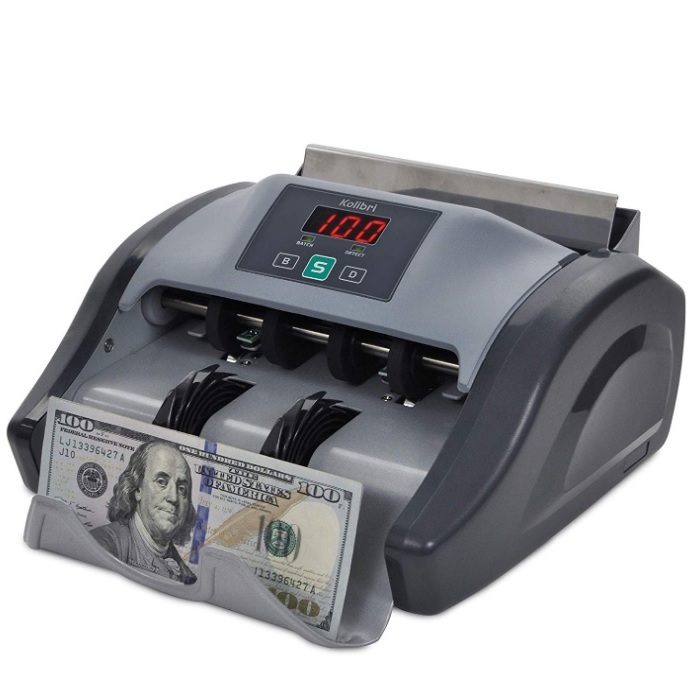

  • Money Counter

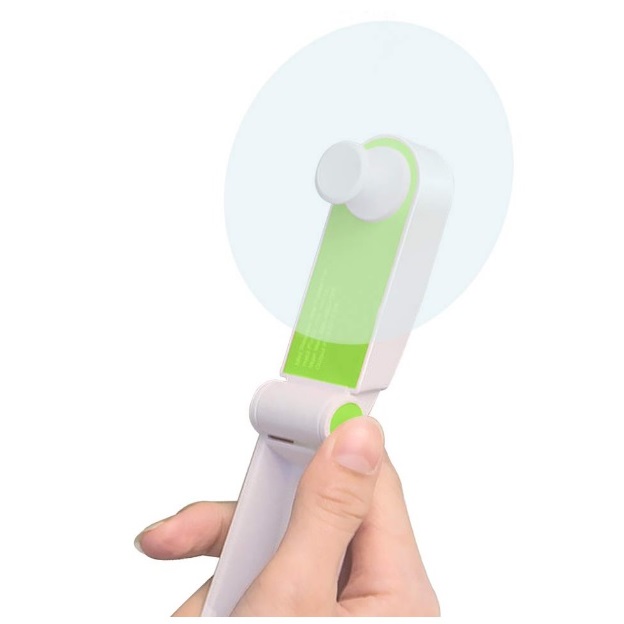

  • Mini Pocket Fan
