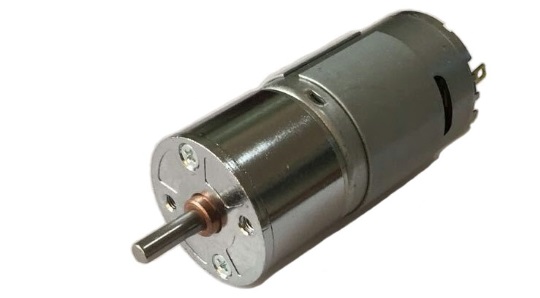

  • Mini DC Gear Motor GA-385

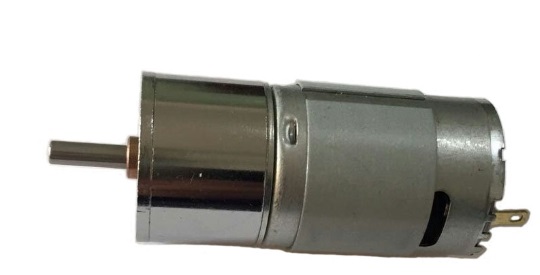

  • Mini DC Gear Motor GA-385 body

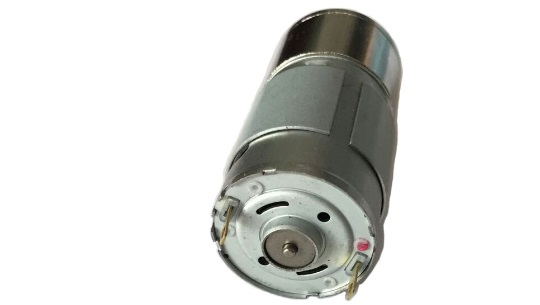

  • Mini DC Gear Motor GA-385 bottom

The GA-385 is small DC gear motor. The motor has high torque and big power. It's light weight and small size, very easy to mount.


The GA-385 is widely used in CCTV camera, coffee machine, robots, etc.


Features:


  • High torque, big power.
  • Small size, very compact.
  • Light weight, only 130g (approx).
  • Low noisy, silent working.
  • Long operating life, >4,000 hours.

Data Sheet:

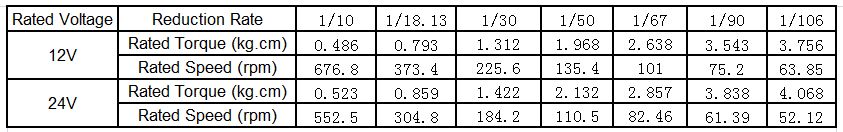

Mini DC Gear Motor GA-385 Data Sheet

Dimension:

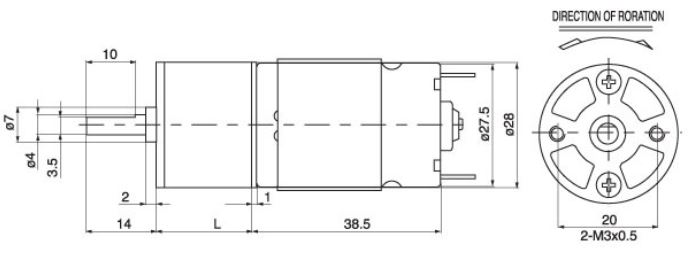

small dc gear motor GA-385 dimension

Applications:

  • CCTV Camera

  • Coffee Machine
