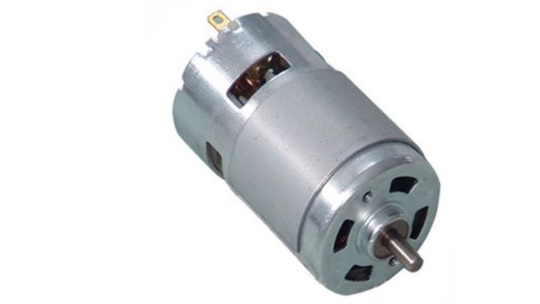

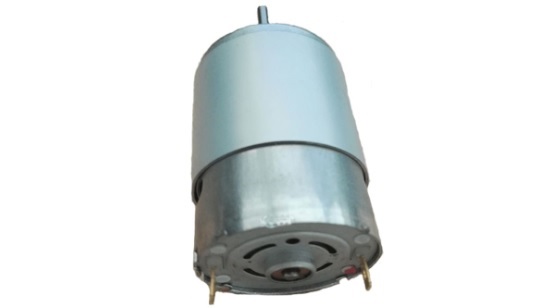

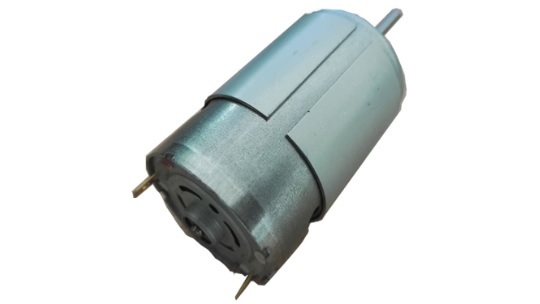

   Mini DC Motor (RS-555)

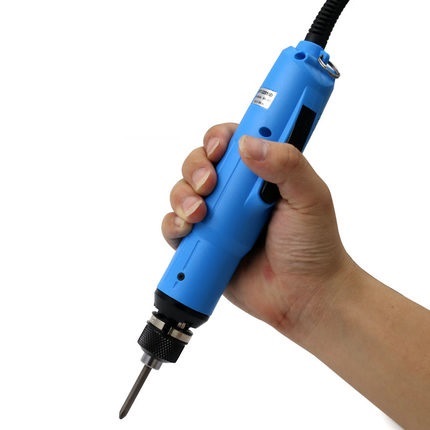

   Application: Screwdriver

                           Air Compressor

                           Vending Machine

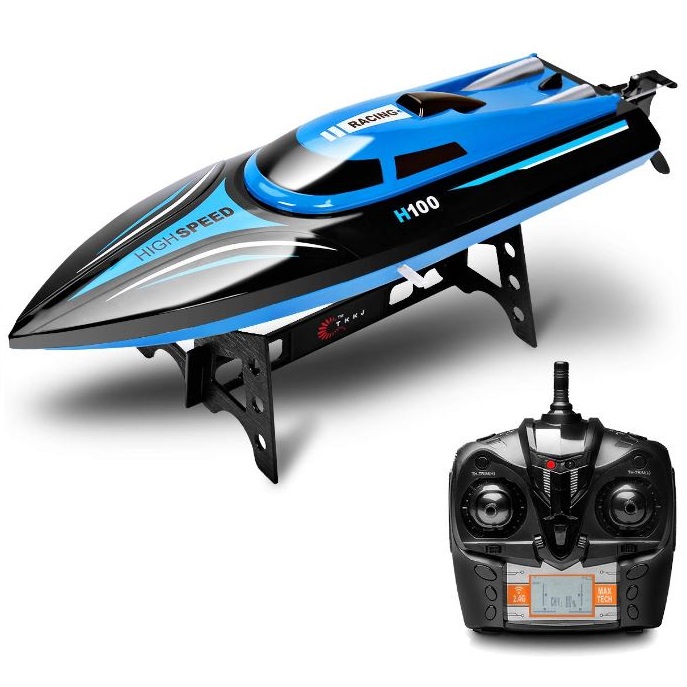

                           Radio Control Model





Model Voltage No Load Maximum Efficiency Stall
Speed Current Speed Current Torque Power Torque Current
 Range Rated r/min A r/min A mN.m g.cm W mN.m g.cm A
RS-555SH-3268 12.0-24.0 12.0 4560 0.118 3955 0.771 18.49 188.6 6.63 139.22 1420.6 5.033
RS-555SH-20140 18.0-30.0 24.0 3887 0.076 3287 0.416 22.93 234.0 6.68 148.59 1516.2 2.281
RS-555SA-3544 9.0-18.0 12.0 7185 0.232 6158 1.391 20.13 205.4 11.59 140.83 1437.0 8.337
RS-555SA-3070 12.0-25.0 24.0 9531 0.216 8231 1.368 27.55 281.1 23.27 202.00 2061.2 8.659
