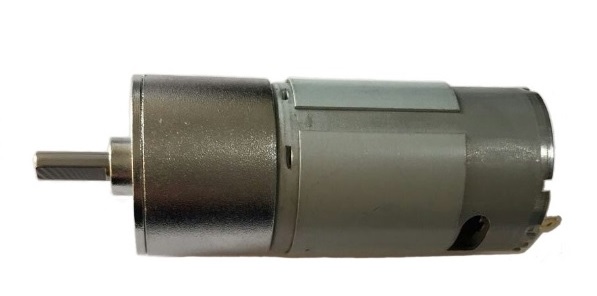

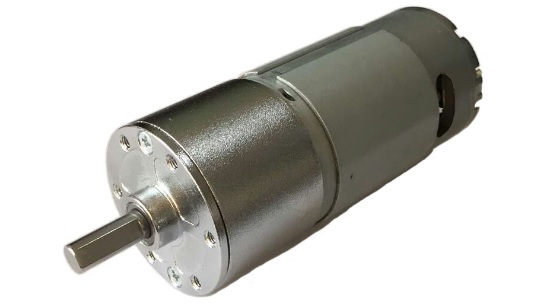

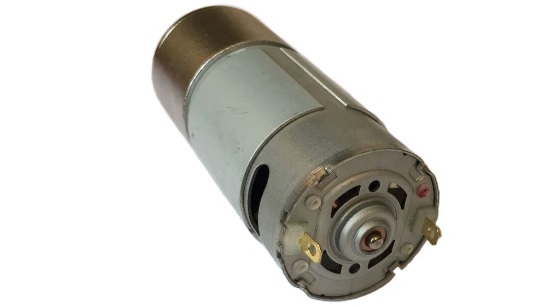

   Mini DC Gear Motor (GA-550)



   Application:   Bank Equipment

                             Toys and Models

                              Safe Box

                              Robot

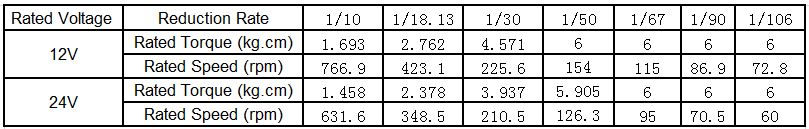

Geared Motor Torque/Speed

Rated Voltage  Reduction Rate 1/10 1/18.13 1/30 1/50 1/67 1/90 1/106
12V Rated Torque (kg.cm) 1.693 2.762 4.571 6 6 6 6
Rated Speed (rpm) 766.9 423.1 225.6 154 115 86.9 72.8
24V Rated Torque (kg.cm) 1.458 2.378 3.937 5.905 6 6 6
Rated Speed (rpm) 631.6 348.5 210.5 126.3 95 70.5 60

Geared Motor Torque/Speed

Model Voltage No Load Maximum Efficiency Stall
Speed Current Speed Current Torque Power Torque Current
 Range Rated r/min A r/min A mN.m g.cm W mN.m g.cm A
GA-550-3565 9.0-18.0 12.0 8918 0.315 7669 1.934 20.54 209.6 16.26 146.64 1496.3 11.874
GA-550-25164 12.0-28.0 24.0 7421 0.160 6316 0.915 17.61 179.7 14.94 118.25 1206.7 5.228
