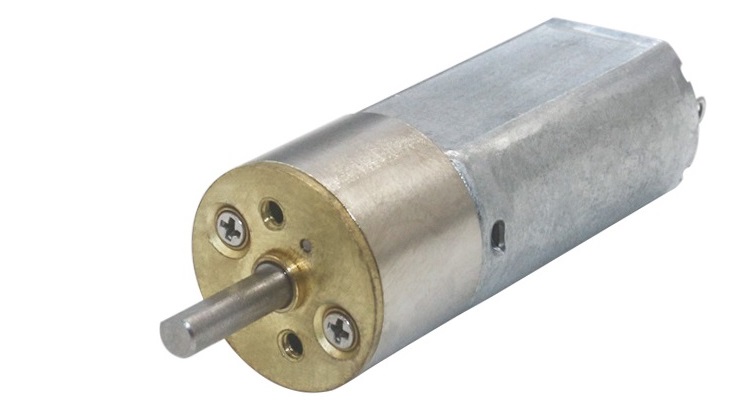

  • mini dc gear motor GA-50

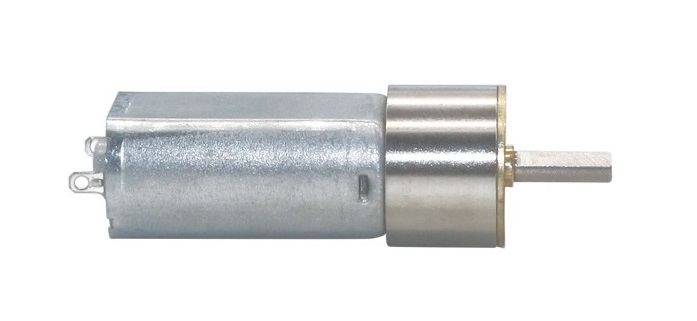

  • mini dc gear motor GA-50 body

The GA-50 is mini DC gear motor. The motor has high efficiency and accuracy. It's light weight and small size, very easy to mount.

The GA-50 is widely used in fingerprint lock, massage chair etc.


  • High efficiency, high accuracy.
  • Small size, very compact.
  • Light weight, only 20g (approx).
  • Low noisy, silent working.
  • Long operating life, >4,000 hours.

Data Sheet:

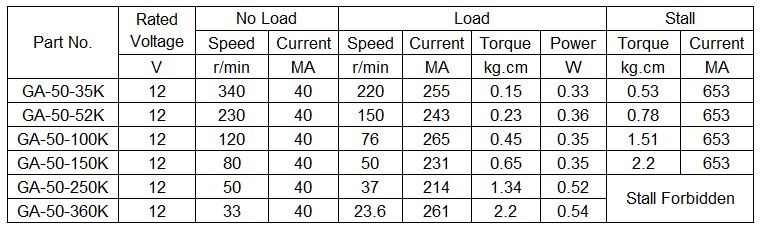

Mini DC Gear Motor GA-50 Data Sheet

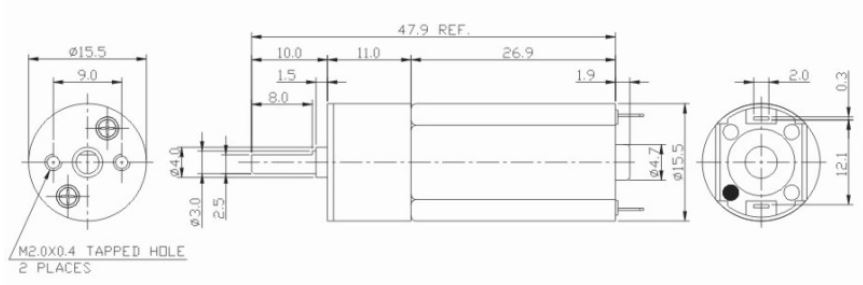

mini dc gear motor GR-50 dimension


  • Fingerprint Lock

  • Massage Chair
