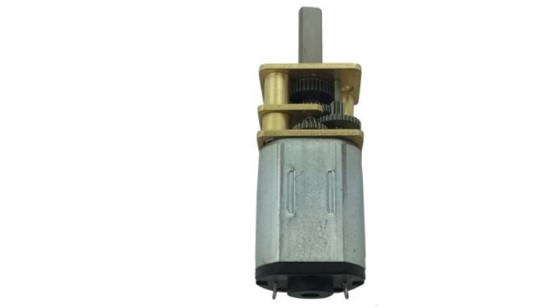

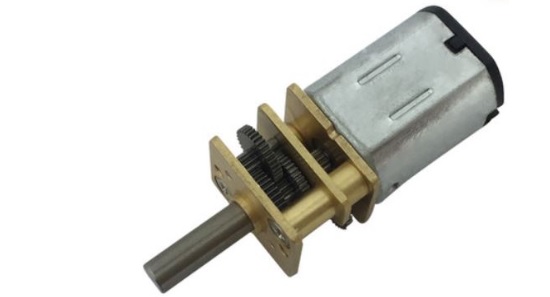

   Mini DC Gear Motor (GA-1215)



   Application:   Precision Instruments

                             Toys and Models

                              Electronic Game Machine

                              Robot

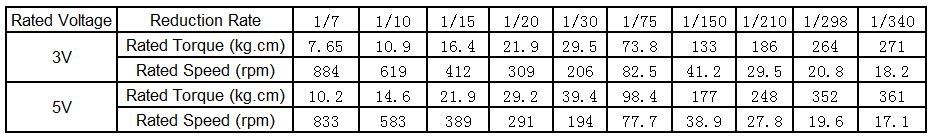

Geared Motor Torque/Speed

Rated Voltage  Reduction Rate 1/7 1/10 1/15 1/20 1/30 1/75 1/150 1/210 1/298 1/340
3V Rated Torque (kg.cm) 7.65 10.9 16.4 21.9 29.5 73.8 133 186 264 271
Rated Speed (rpm) 884 619 412 309 206 82.5 41.2 29.5 20.8 18.2
5V Rated Torque (kg.cm) 10.2 14.6 21.9 29.2 39.4 98.4 177 248 352 361
Rated Speed (rpm) 833 583 389 291 194 77.7 38.9 27.8 19.6 17.1

Geared Motor Torque/Speed

Model Voltage No Load Maximum Efficiency Stall
Speed Current Speed Current Torque Power Torque Current
 Range Rated r/min A r/min A mN.m g.cm W mN.m g.cm A
GA-1215-08220 2.0-4.0 3.0 8058 0.025 6186 0.083 0.19 2.0 0.12 0.82 8.4 0.273
GA-1215-06370 4.0-6.0 5.0 7618 0.013 5828 0.042 0.17 1.8 0.10 0.73 7.5 0.138
